Description
New Resources Environment Technology & Trading Co., Ltd is proud to be the distributor of Suma – Germany submersible mixers in the Vietnamese market.
FEATURE
- Manufacturer Suma – Germany, an experienced partner in the sector of industrial mixing equipment, offer customized agitator solutions specially tailored to your requirements in the industrial sector.
- Develop and manufacture suction and push propeller. as well as aerodynamicaly optimized high-performance blades.
- Diameters from 250 to 2.600 and speeds from 950 rpm to 30 rpm allow specific configurations for maximum energy efficiency.
- The material of the propeller must be suitable for the pH value of the substrate, depending on the aggressi veness of the medium.
- Possibility of uncomplicated retrofitting with a new agitator blade, even on older models
APPLICATION
- The long-axis and submersible agitators are used in a wide range of industrial sectors:
- Wastewater treatment
- Chemicals, petrochemicals
- Food industry

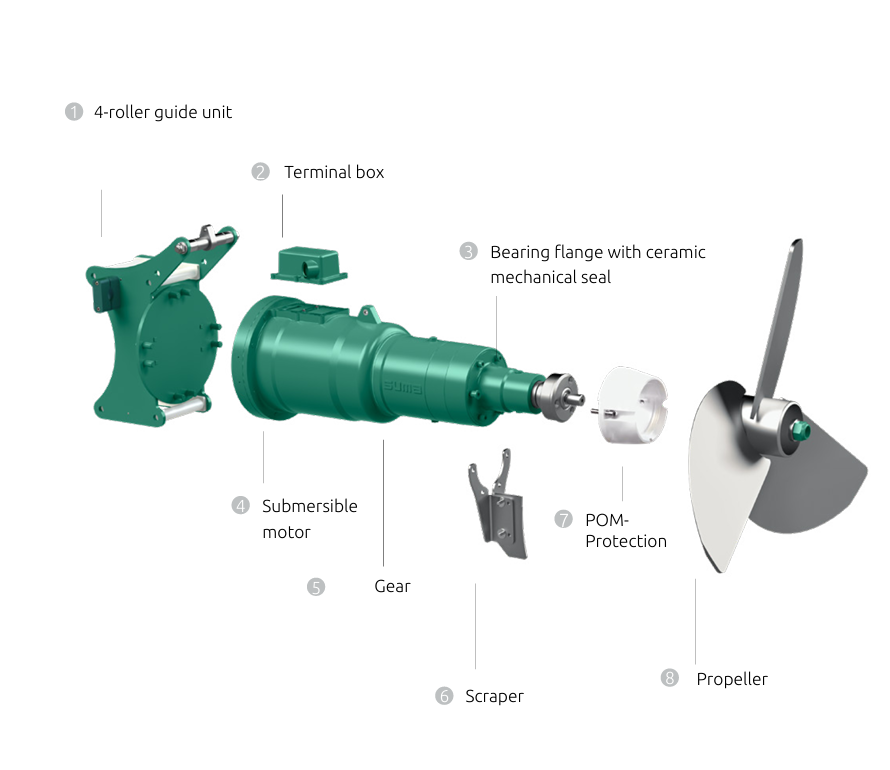

STRUCTURE
- Design model, our submersible mixers can be individually combined in regard to motor power, gear, propeller and mast size.
- Separated oil chambers for motor, gear and bearing housing
- substrate temperatures of up to 55°C
- Mechanical seal SiC/SiC seals the rotating shaft to the bearing flange and prevents substrate from entering the agitator blade bearing
- Microbe-resistant cable includes as standard in the delivery
Type of propeller
FAST MIXING

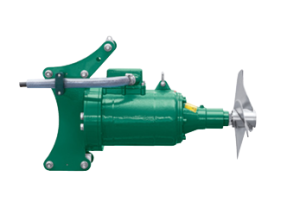

OPTIMIX 2G 30-710
Especially for smaller tanks
For dry matter content up to 8 %
OPTIMIX 2G
For dry matter content up to 12%
Optional available as direct rotor without gear
OPTIMIX 3G
High performance agitator for large tank dimensions
For dry matter content up to 12%
OPTIMIX 2A 15-720
For dry matter content up to 4% and pH value 5.5 – 8.2
Completely made of stainless steel
Self-cleaning stainless steel propeller
LOW MIXING
OPTIMIX 2G 30-30
OPTIMIX 2G 90-65
